SE194K – 3 zone

DESCRIPTION

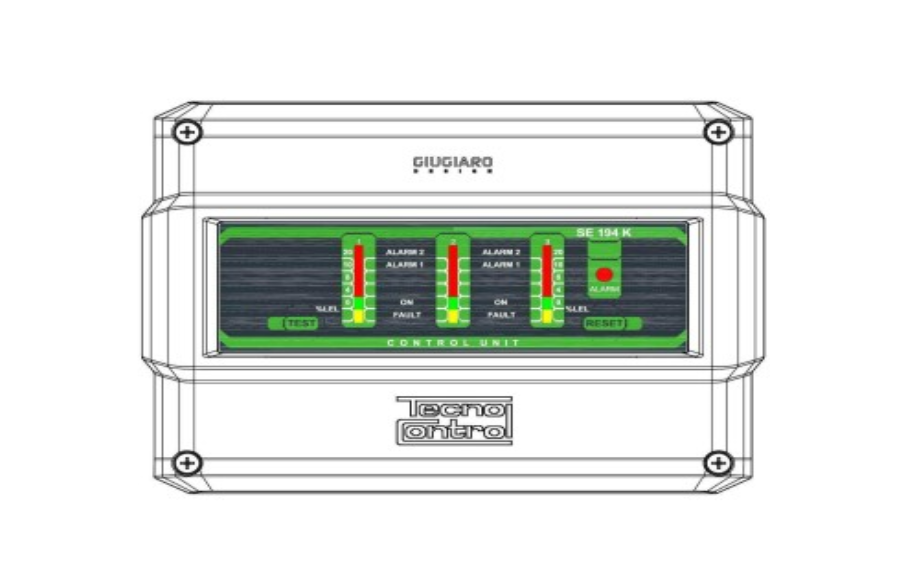

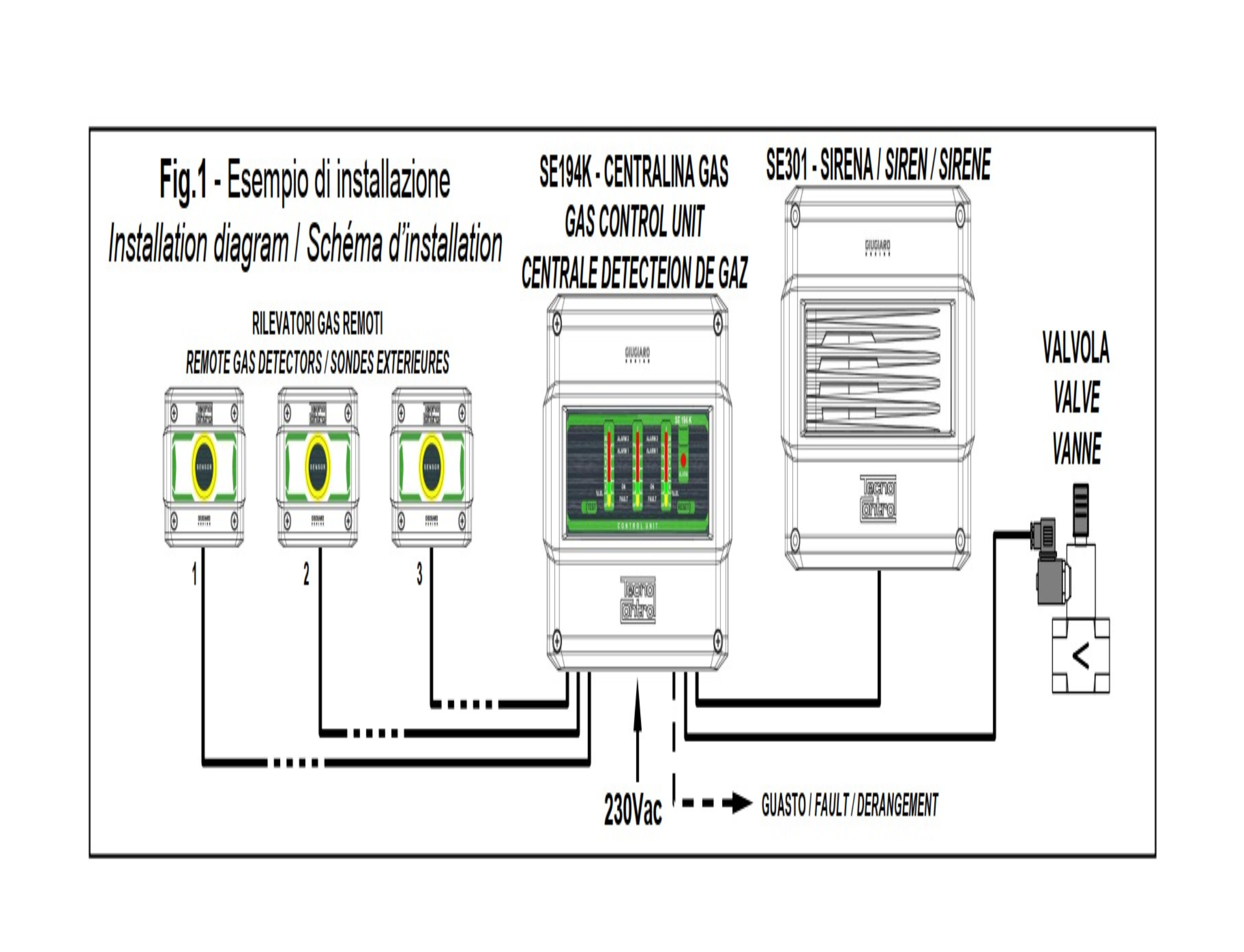

The SE194K is a central unit for heating plants, it can be connected up to 3 remote catalytic gas detectors for flammable gas.

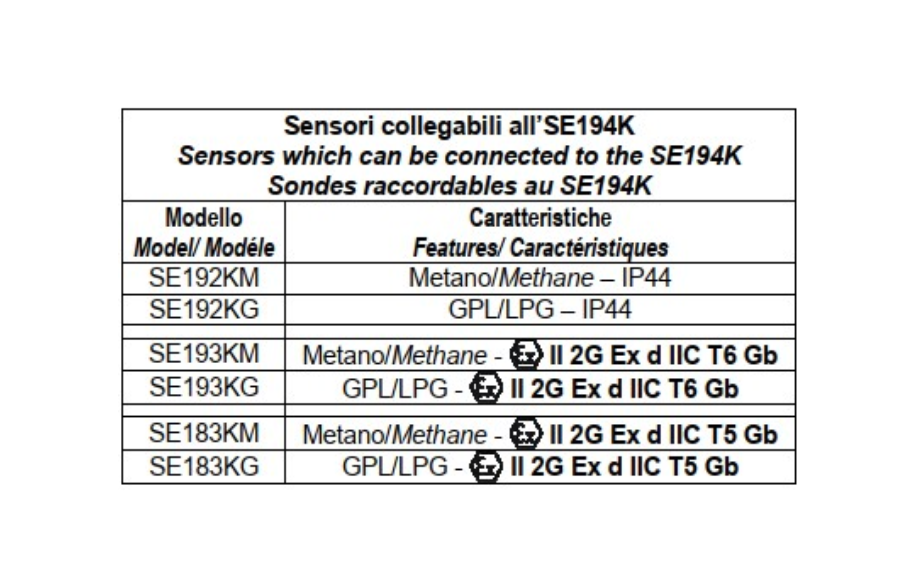

The central unit should be connected with different remote gas detectors, the models available are:

The SE192KM and SE193KM or SE182KM should be used in plants using Methane.

The SE192KG and Se193KG or SE182KG should be used in plants using LPG.

Request Quotation
Technical specifications
Power supply 24Vcc
Installation Wall
Absorption 10 VA
Alarm level 10% LIE - 20% LEL
Measuring range 0÷20% LEL
