SE294K – 4 zon

DESCRIPTION

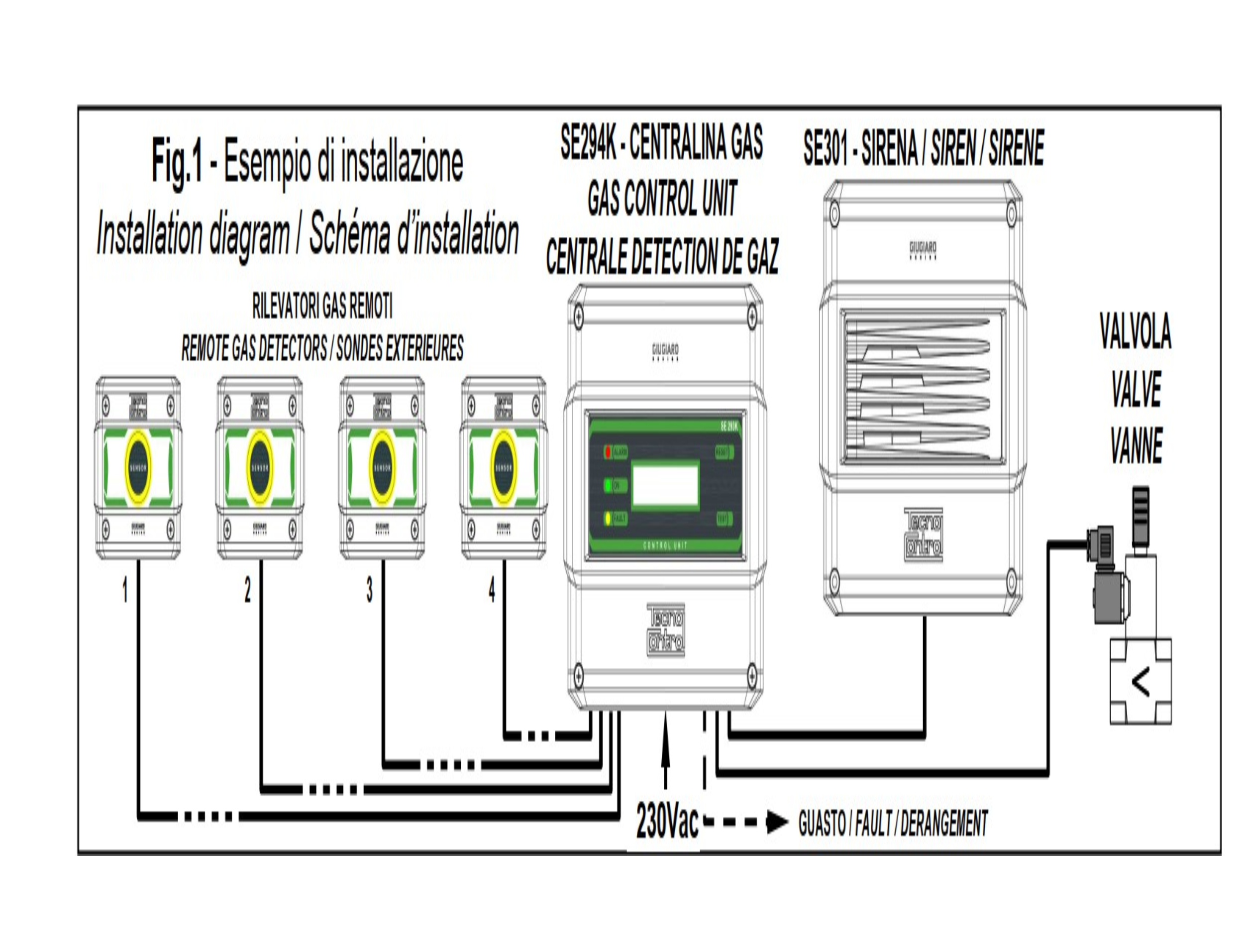

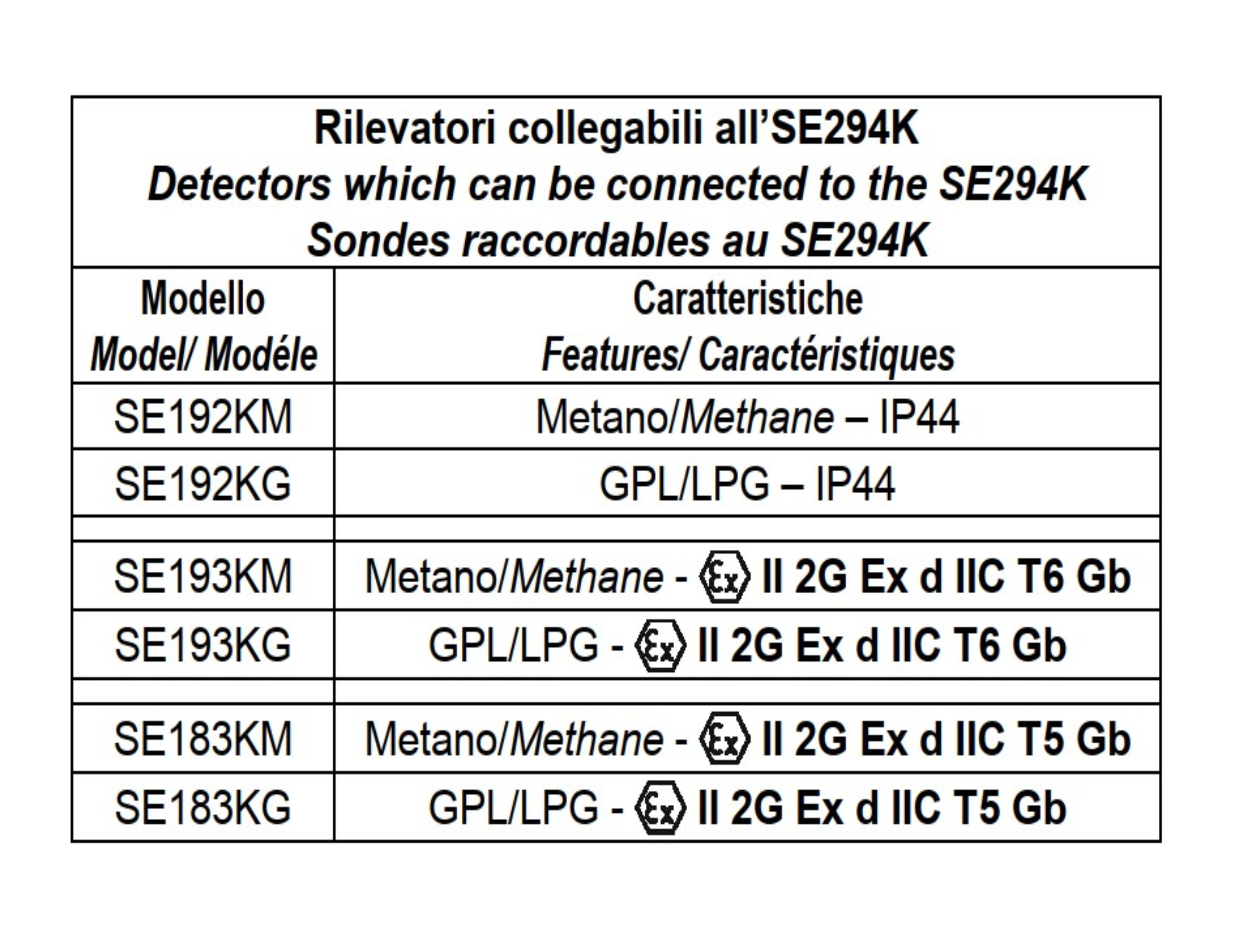

The SE294K is a Control unit for heating plants or environments to be protected from possible gas leaks, which can be connected up to 4 remote catalytic detectors for flammable gases. It can be connected to the following detectors:

The SE192KM and SE193KM or SE182KM should be used in plants using Methane.

The SE192KG and Se193KG or SE182KG should be used in plants using LPG.

Request Quotation
Technical specifications
power supply 110÷240Vac (-15/+10%) 50÷60Hz / 10VA
Installation Wall
Alarm level 10% LIE - 20% LEL
Measuring range 0÷20% LEL
